Textures

Texturesplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
enable a realistic representation of surfaces. If a textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
is applied to a surface, it is given the corresponding appearance. These texturesplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
are responsible for the following properties of surfaces: 1. image: The diffuse map is a coloured image of the surface. 2. reflection: The normal map determines how a light source is reflected in the surface. 3. roughness: The roughness map defines smooth and rough areas. 4. gloss: The metalness map (sometimes also called gloss map) determines how strongly reflective a surface is at the location. 5. heights and depths: The displacement or height map: These define this information.

Properties of products

Texturesplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
are often used for products that give surfaces their character. Surfaces can be:

Ultimately, it is about the design of any product surface.

The products have these properties, which contain information about the manufacturer and product.

Property Example
Manufacturer Dinesen
Manufacturer email [email protected]
Product name Oak Classic One
Order number XT4711
Name of the product line PARK 18 (2200x181x14mm)
Description of the product line The 3-layer plank with character. The generous oak wideplank emphasises the warm atmosphere of your rooms with its characterful features.
Material name Oak parquet smoked calm
Material type Parquet, oak
Service class 32
Abrasion class AC3
Durability class 2 (1-5)
Delivery zone AT, DE, FR, NL
Real world width of the map 7230
Real world height of the map 6420
Element width 1200
Element height 300

Use of the images

The images have different meanings for the visualisation of surfaces on which these texturesplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
are applied. To achieve a realistic appearance, maps are required in this order (from important to less important): 1. diffuse map 2. normal map 3. roughness map 4. metalness map 5. displacement or height map

Some maps contain similar information and can be used to generate other maps. For example, a normal map can be generated from a height map or a displacement map.

Diffuse map

The diffuse map is the basic textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
and is also known as the colour map, as it is used to define the colours of the model.

Normal map

A normal map influences the normal vector. In geometry, a normal vector is a vector that is orthogonal (i.e. at right angles, perpendicular) to a straight line, curve, plane or (curved) surface. A straight line with this vector as the direction vector is called a normal vector (en: normal). (More about this: Wikipedia)

The normal vector influences the direction of light reflection. The normal map can therefore be used to influence light reflection.

When viewing a textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
, we also show an additional normal quality indicator as a blue-purple circle below the textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
object.
below the textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
object. The less movement there is in the bright dot, the smaller the deviation from the vertical normal for this textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
.

What does a rotating dot on the normal quality indicator mean? If the bright dot rotates here, then a reflection is influenced by the normal map in such a way that a rotation of the surface around the vertical axis for a light reflection causes a shift in the position of the reflection. This means that if the textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
is to be used for a floor covering, it makes a difference to the reflection if the surface is rotated by 180 degrees. The reflection of a sun on this reflective textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
is then displayed offset, which can lead to undesirable effects.

For straight surfaces such as floors or walls, only use texturesplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
where the normal quality indicator shows a point that is as stable as possible.

Creating a normal map

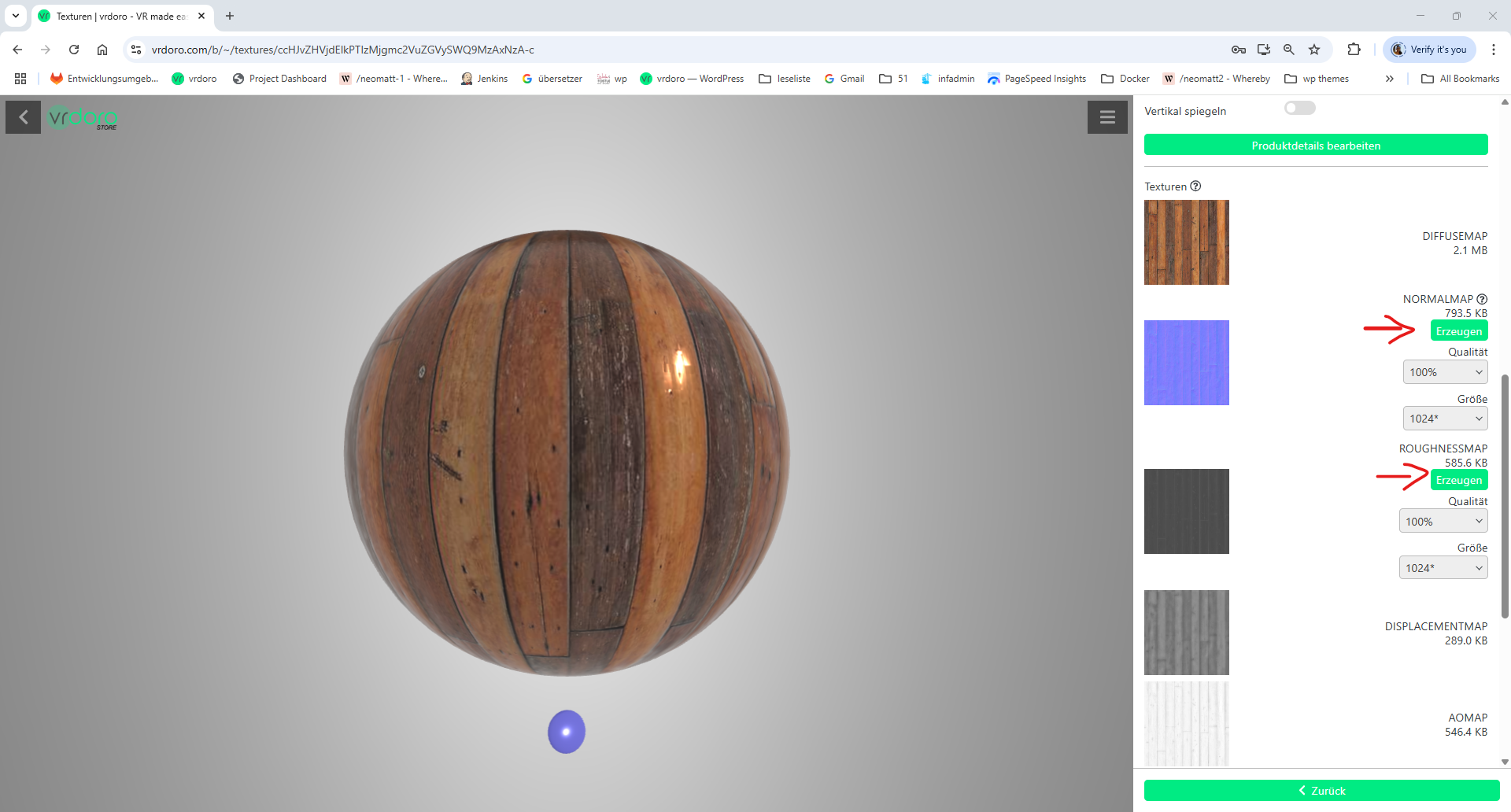

The button Generate button is used to create a normal map from the diffuse map. This button can be used if the texturesplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
do not have a normal map or the normal map is not correct. After the normal map has been created, the filter options are displayed with the default values with which it was created. These values can be adjusted as required. Each time the filter options are changed, a new map is created and the results can be seen on the textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
sphere.

The button Save button appears when we create a normal map. If you clickplugin-autotooltip__default plugin-autotooltip_bigClick

Depending on the device, clicking refers to the user action for selecting an element. For devices with a mouse, this means pointing to the element followed by pressing the left mouse button. For devices with touch displays, this means tapping or tapping and holding (iOS: long touch). In the
on the Save button, the newly created normal map is saved in the texturesplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
as a normal map or the existing normal map is replaced by the new map.

Roughness Map

The roughness map provides information and details about the surface, whether it is rough or smooth. It is a greyscale map that varies in all shades of grey. A surface with a lower roughness value is more reflective and a higher roughness shows fewer highlights.

If the textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
does not have a roughness map or needs some changes, it can be created by clickplugin-autotooltip__default plugin-autotooltip_bigClick

Depending on the device, clicking refers to the user action for selecting an element. For devices with a mouse, this means pointing to the element followed by pressing the left mouse button. For devices with touch displays, this means tapping or tapping and holding (iOS: long touch). In the
ing on the Generate button and saved with the Save button.

Displacement map

The displacement map, also called height map, defines the height range of the structure. It is also a greyscale map that varies from black to white and defines the height of the structure. The white part of the textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
represents the higher part of the material and the black areas represent the lower parts.

AO Map

An Ambient Occlusion or AO map is a greyscale map that contains lighting data. It is often used together with the diffuse map to create small shadow details on the surface. (More about this: AO Map)

ARM Map

ARM is the abbreviation for Ambient Occlusion, Roughness and Metallic. The ARM textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
map combines the three texturesplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
into a single textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
map with separate red, green and blue colour channels.

Emissive map

An emissive map is known as a fullbright map, glow map, incandescence map or self-illumination map. It is used for a glow effect in the dark, but does not emit any light onto neighbouring surfaces. It can be used in conjunction with a diffuse map to add a glow effect, such as magical runes on a sword or the heated material of a torch.

Metalness Map

A metalness map is used to define which areas of the material are metallic. It is a greyscale map in which the black areas are dielectric and non-metallic and the white area represents metal.

Alpha Map

The alpha map is a greyscale textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
in which black stands for transparent and white for opaque.

Notes

The diffuse map and the normal map are primarily used for VRplugin-autotooltip__default plugin-autotooltip_bigVirtual reality (VR)

Virtual reality (VR) is a computer-generated, interactive environment in which a person can fully immerse themselves. With the help of special devices such as VR glasses, the real world is completely replaced by a simulated one. The user experiences a three-dimensional, artificial environment that can appeal to all the senses.
scenes that are also used on devices that are not very powerful. The maximum textureplugin-autotooltip__default plugin-autotooltip_bigTexture

A texture is an image that is displayed on the surface of a virtual body in order to change the surface properties such as colour, roughness, metalness, normal vectors and others.
file size is set at 50 MB
is set. Textureplugin-autotooltip__default plugin-autotooltip_bigTextur

Eine Textur bezeichnet ein Bild, das auf der Oberfläche eines virtuellen Körpers dargestellt wird, um die Oberflächeneigenschaften wie Farbe, Rauheit, Glanz, Normalen-Vektoren und anderes zu verändern.
images that exceed this size will be reduced in size before uploading.
